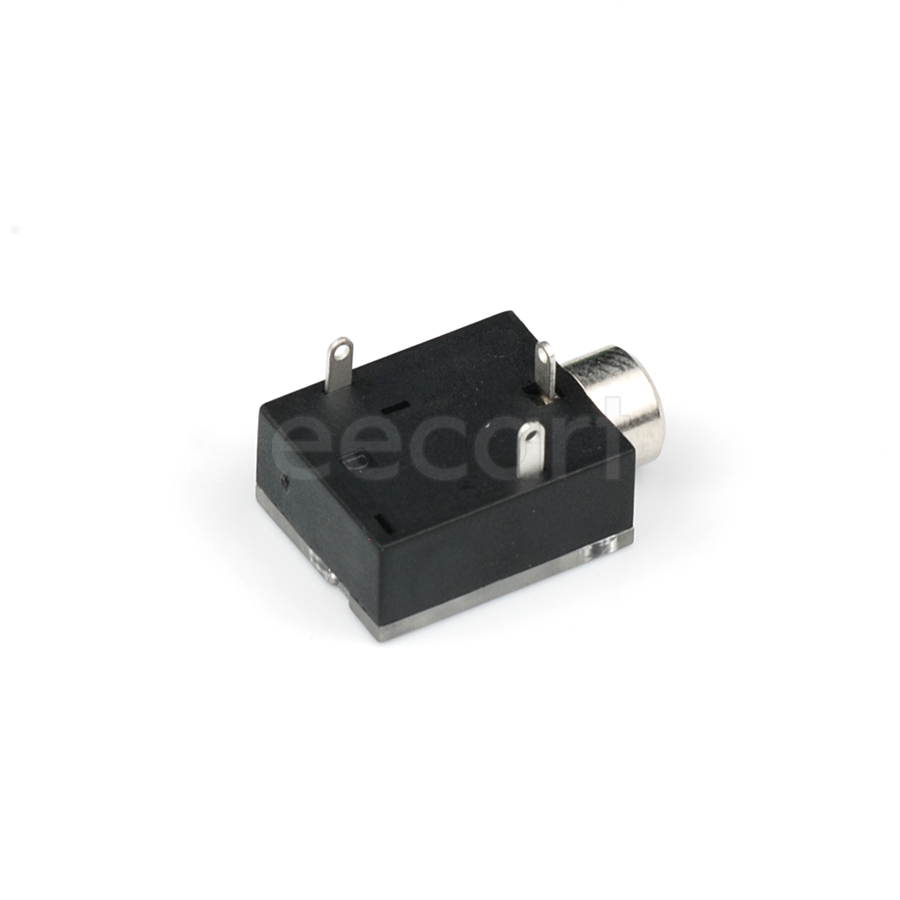

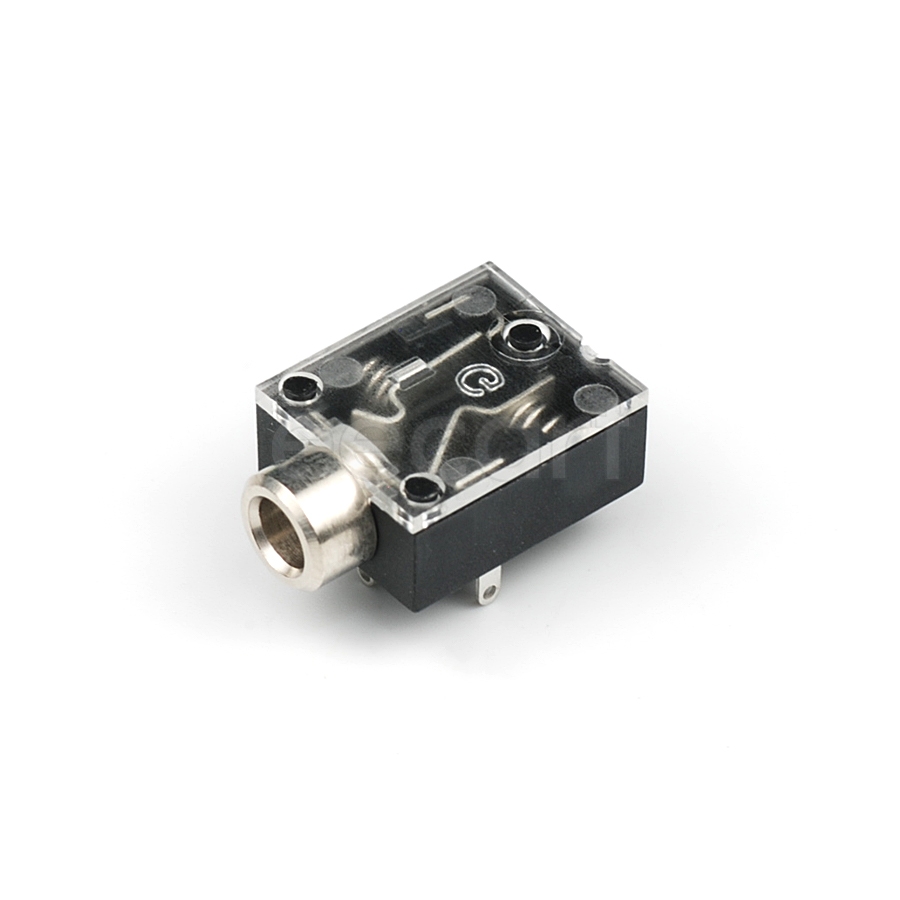

SJ1-3513N
Manufacturer:
Same Sky
Mfr.Part #:
SJ1-3513N
Datasheet:
Description:
Audio / Video Connectors Through Hole Female Number of Positions:3 Horizontal Phone Jack
| Parameter | Value |
|---|---|
| Termination | Solder |
| Diameter | 3.5 mm |
| Packaging | Bulk |
| Voltage Rating | 12 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Current Rating | 1 A |
| Orientation | Horizontal |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Body Material | Brass |
| Number of Ports | 1 |
| Number of Conductors | 3 |
| Number of Positions | 3 |
| Connector Type | Phone Jack |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
Stock: 927
Distributors
pcbx
pcbxUnit Price$0.72583
Ext.Price$0.72583
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.72583 | $0.72583 |
| 10 | $0.62410 | $6.24100 |
| 25 | $0.58050 | $14.51250 |
| 50 | $0.54630 | $27.31500 |
| 100 | $0.50484 | $50.48400 |
| 300 | $0.46652 | $139.95600 |
| 500 | $0.43111 | $215.55500 |
| 1000 | $0.39840 | $398.40000 |
